YXCZ1-U, N2XCH Control Cables

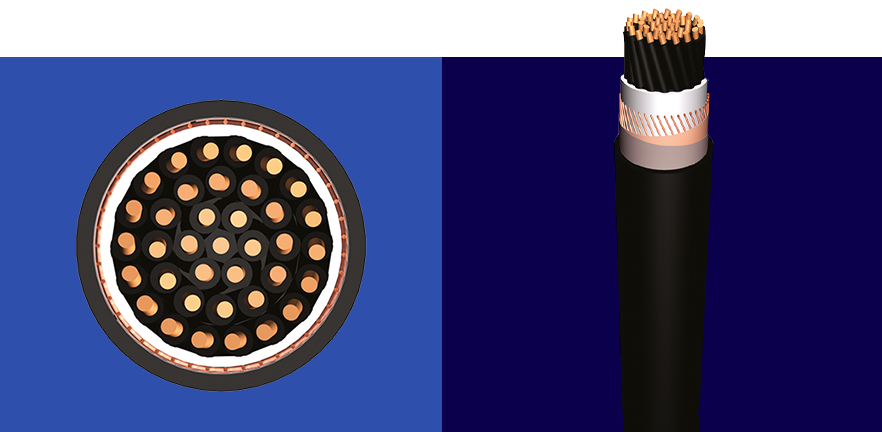

CONSTRUCTION

Solid or stranded copper conductor, XLPE insulation, Filler, Concentric conductor, Copper tape as binder, Polyester tape, HFFR outer jacket

TECHNICAL INFORMATION

CPR Certified

RoHS Compliance

Reach Compliance

Low Smoke

Halogen Free

Flame Retardant

Fire Resistance

Rigid Cable

Max. Operating Temprature: 90 °C

Max. Short CircuitTemprature: 250 °C

Installation Temprature: -5 °C

Underground

Damp and Wet Places

In Cable Ducts

Power Stations

Industrial Plants

Local Supply Systems

APPLICATION

These cables have a low dielectric loss, Indoor installations, in cable ducts, outdoor and underground for power stations, industrial plants and switching stations as well as local supply systems if increased protection is necessary. In case of mechanical damage the screen prevents any demage due to power leak to the surrounding area.
